Introducing the ASTRA LED cabinet lighting series. The ASTRA is an alternative to the traditional halogen light sources. The ASTRA features a high output LED package to offer superior performance and light over the working area whilst only consuming a total 3.6W of energy. The ASTRA offers two mounting options to cover a wide range of applications.
These include recessed mounting or surface mounting. Smooth even lighting is provided from a single light point and frosted lens.

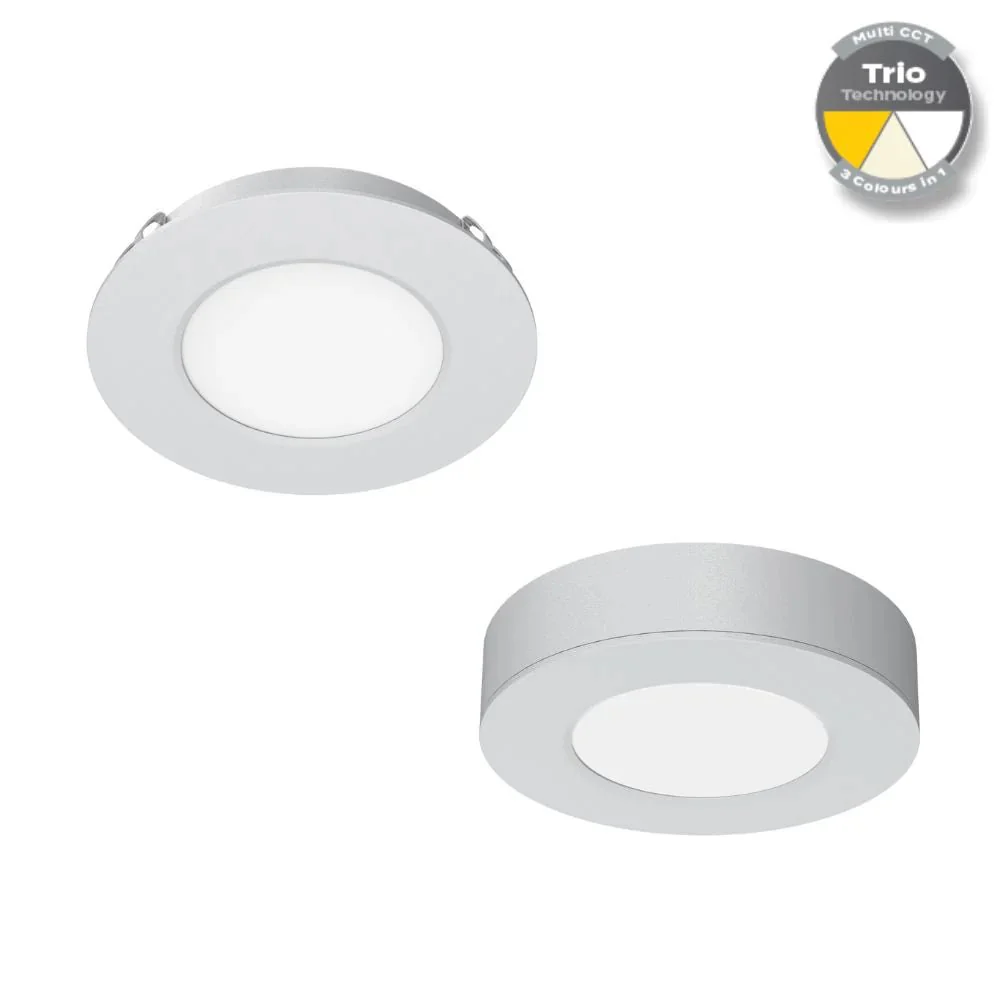

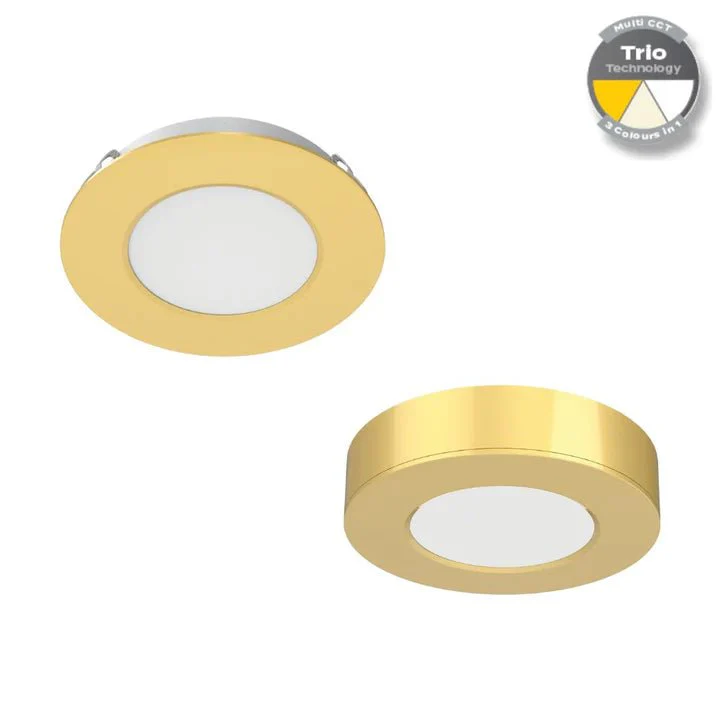

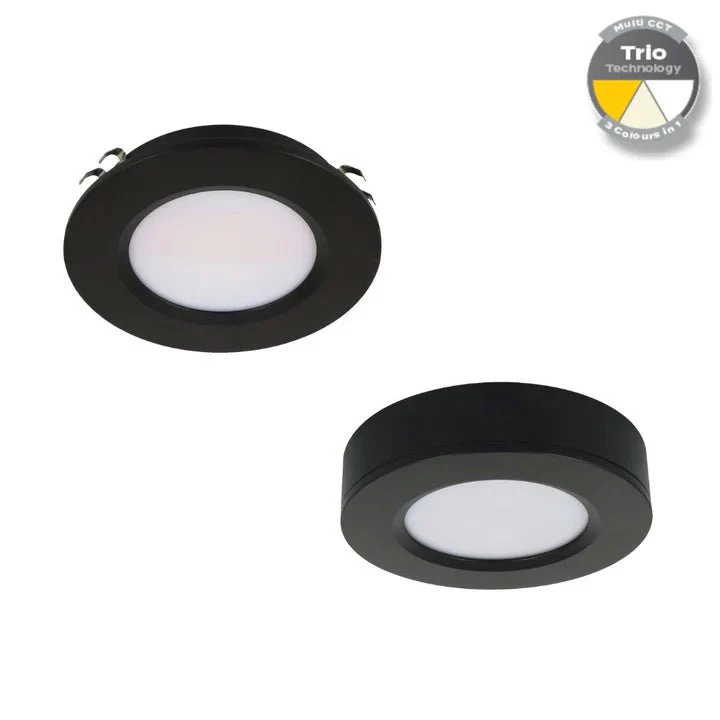

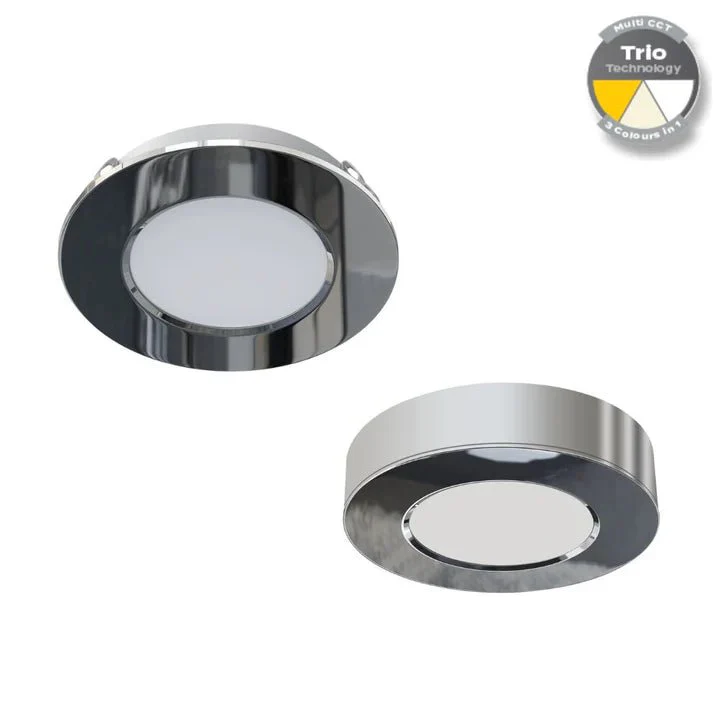

Available in White, Black, Silver, Satin Brass and Polished Chrome colour options. Tricolour switchable: choose between Warm White 3000K, Neutral White 4000K, or White 5000K colour temperatures with the flick of a dip switch. Requires 12V DC Constant Voltage LED Driver.

• Requires: 12V DC LED Constant Voltage Driver - Wire in parallel
• Tri-Colour Switchable - Available in 3000K Warm White, 4000K Neutral White or 5000K White
• 3 Year Replacement Warranty
• Cutout: Ø65mm

Specifications:

• Input Voltage: 12V DC (12V DC Constant Voltage Driver required)
• Power (W): 3.6W LED
• LED Type: SMD
• IP Rating: IP20
• Lumen Output: 3000K - 200lm, 4000K - 230lm, 5000K - 205lm
• Beam Angle: 110°
• Dimmable: Yes (With 12V DC Constant Voltage Dimmable Driver)
• Material: Metal and Glass

Dimensions:

• Diameter: Ø65mm
• Height: 18.5mm (With Surface Mounted Ring)
• Cut-out size: D Ø65mm x H 13.5mm
