Fantech RAPID - Round/Square Response Grilles with Led - Only Accessory

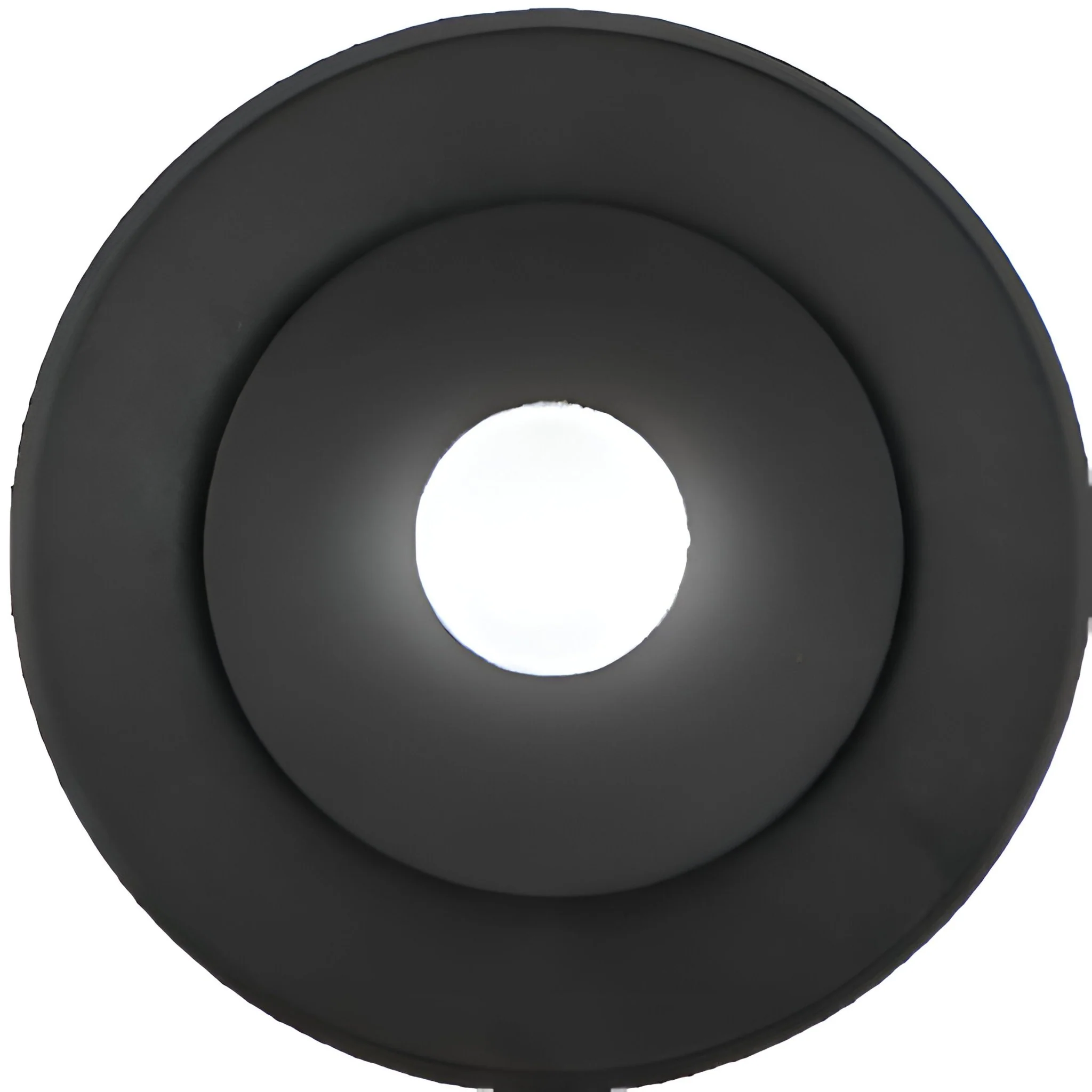

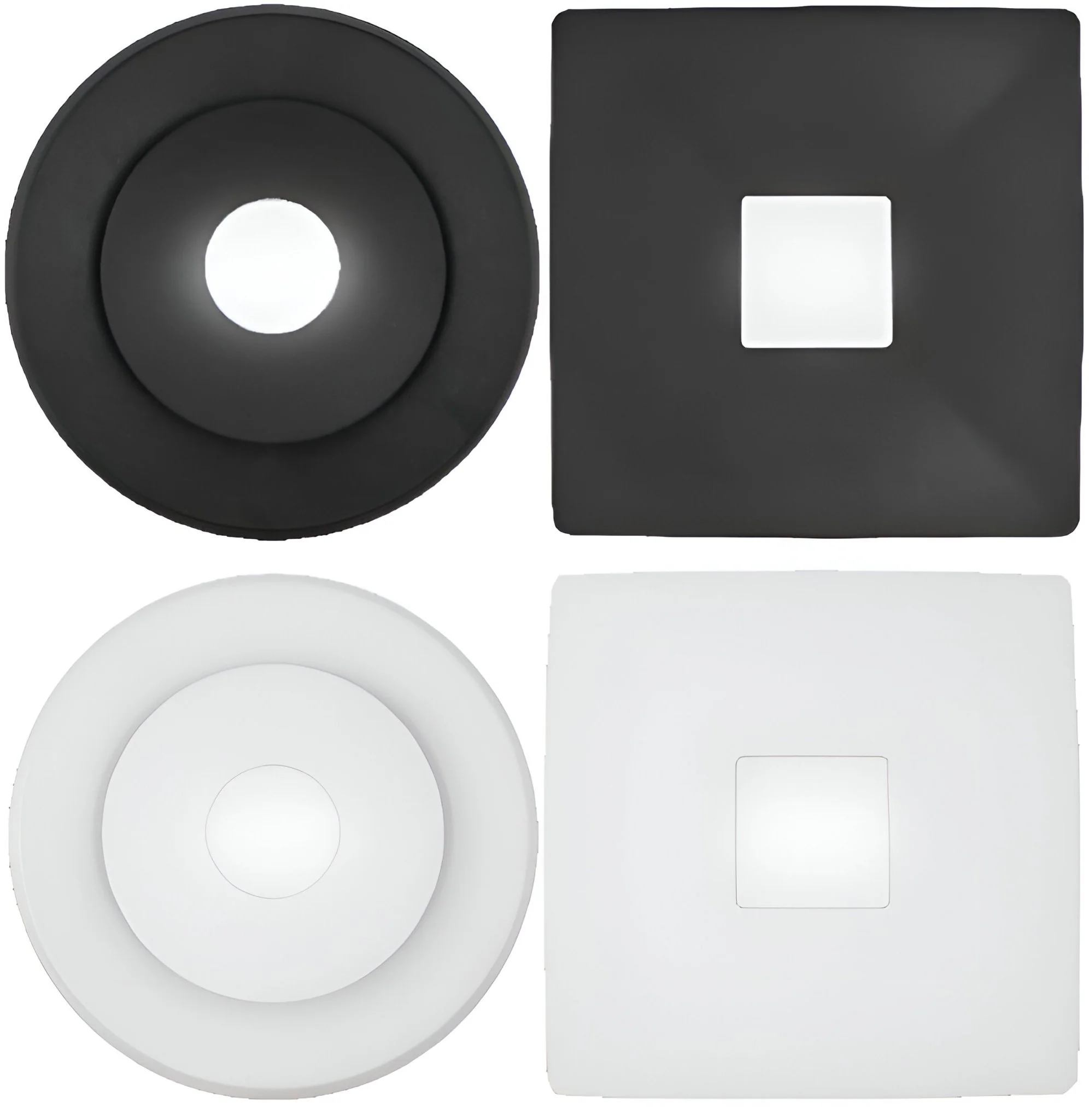

The stylish Rapid Response Grilles have a contemporary design and are available in a white or black finish. The stylish and modern Rapid Response grille is available in round and square designs with white or black finish (black finish only available with 10” model).

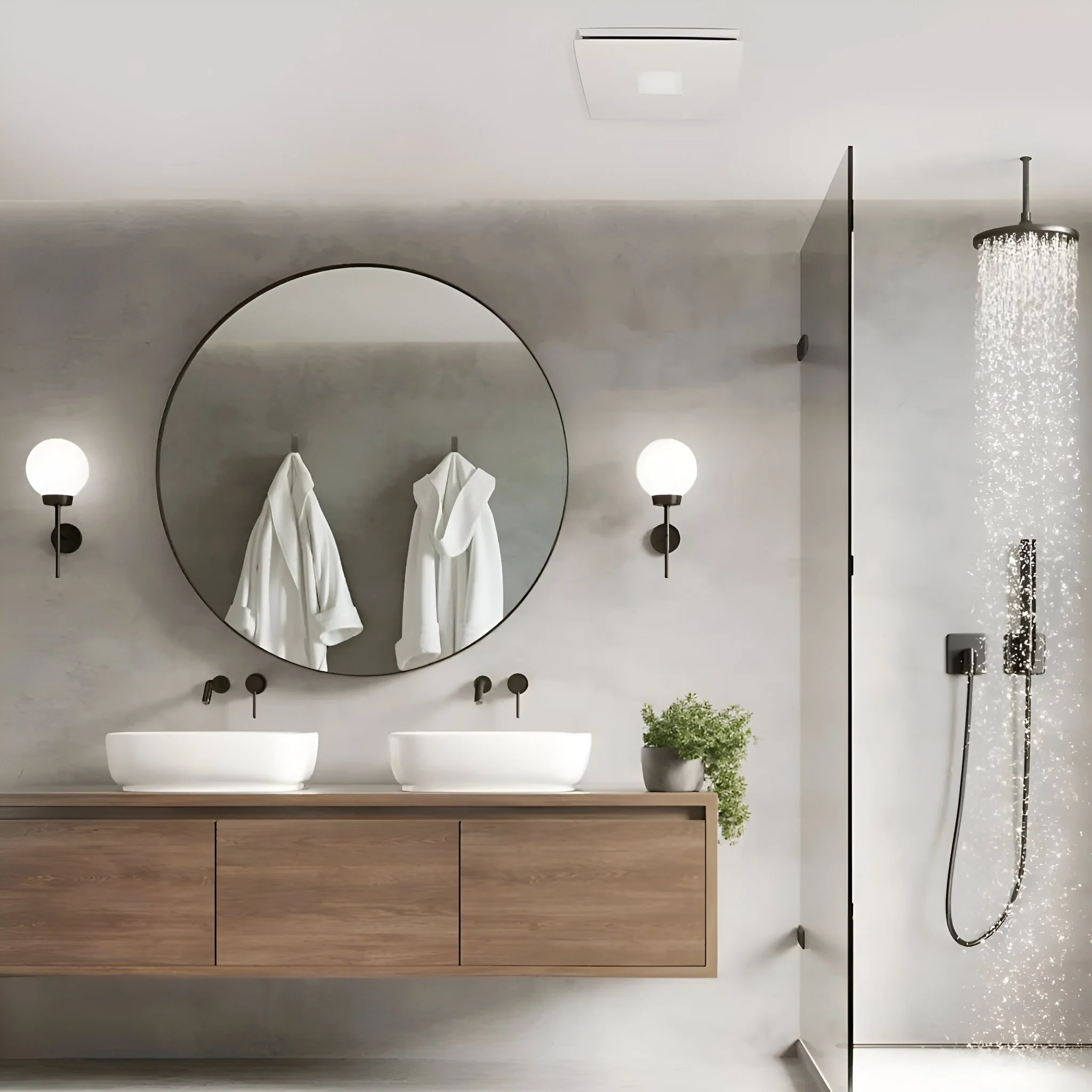

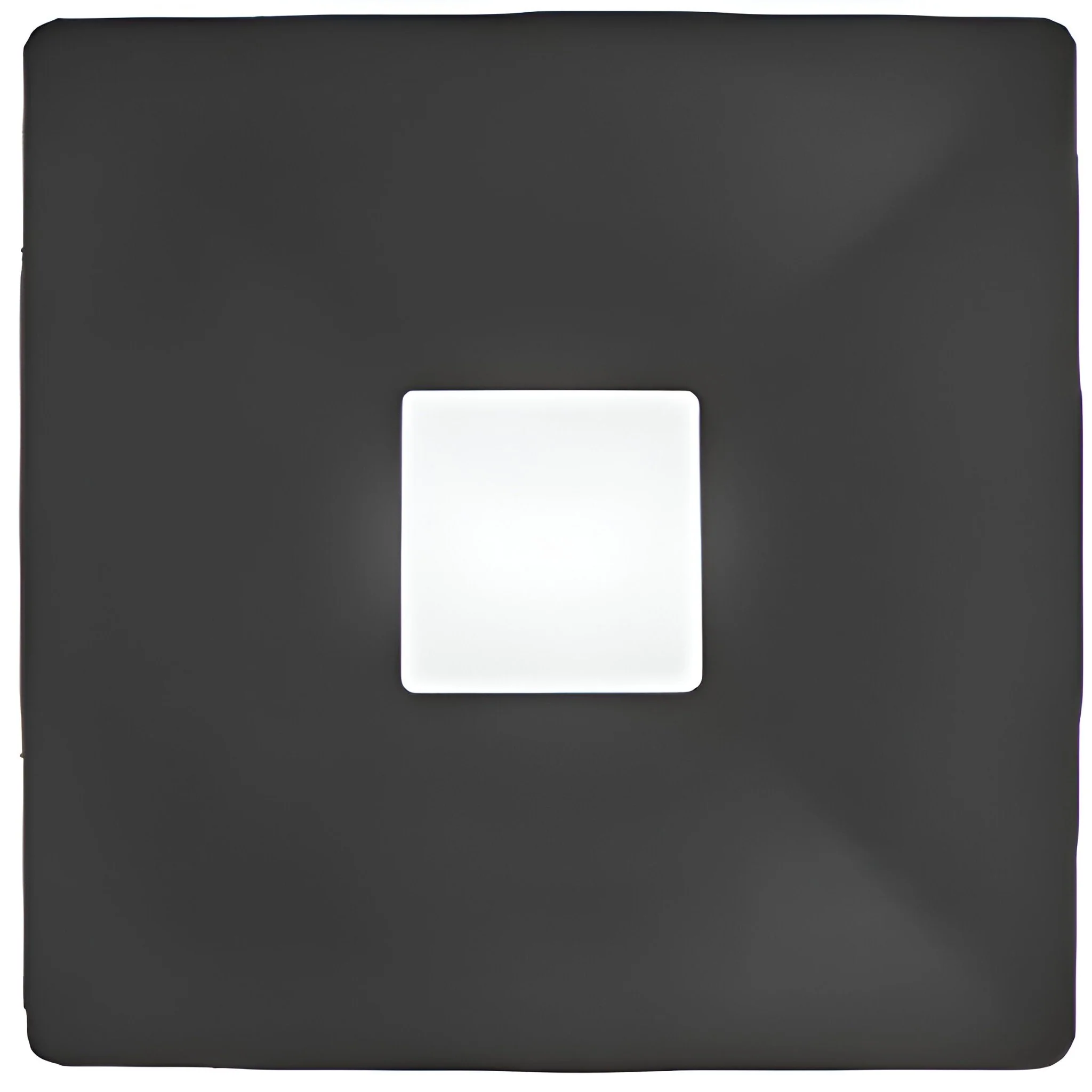

The stylish and modern Rapid Response Grille with LED light will brighten up any bathroom, ensuite or toilet. LED light can be set to daylight, cool or warm white by changing the Tri-Switch’s position. The Rapid Response grilles are quick to install and can be easily removed for cleaning. Available in a white or black finish.
Features

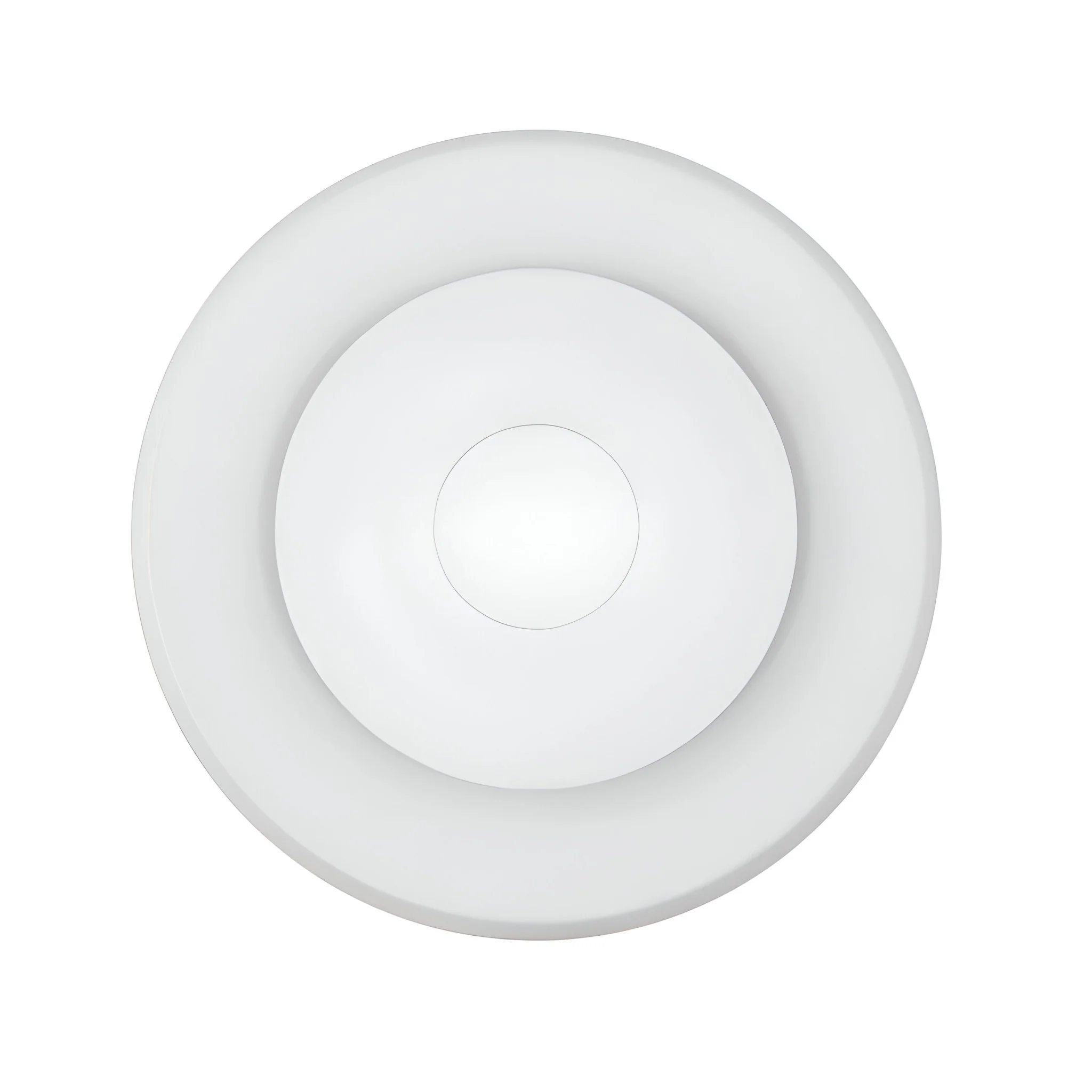

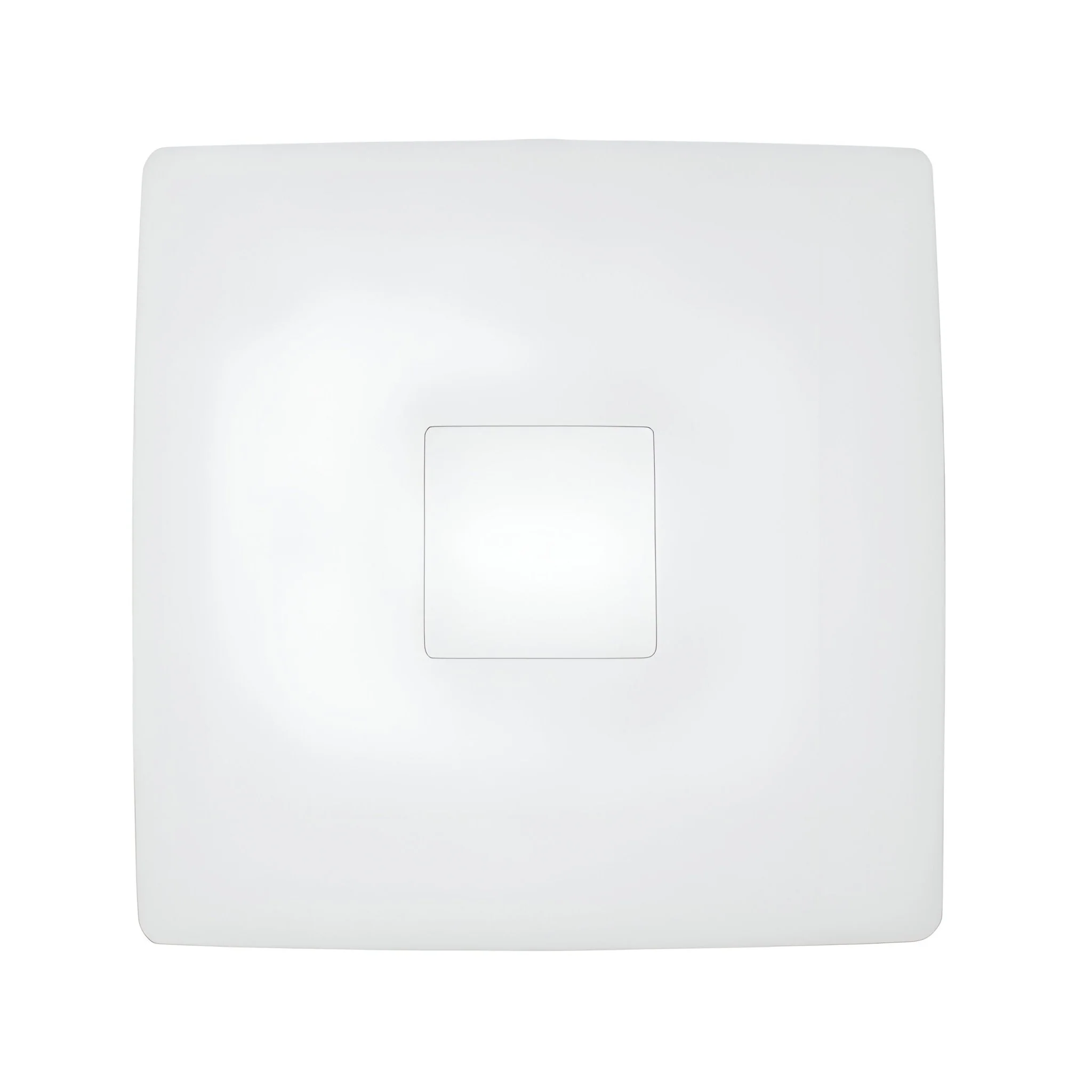

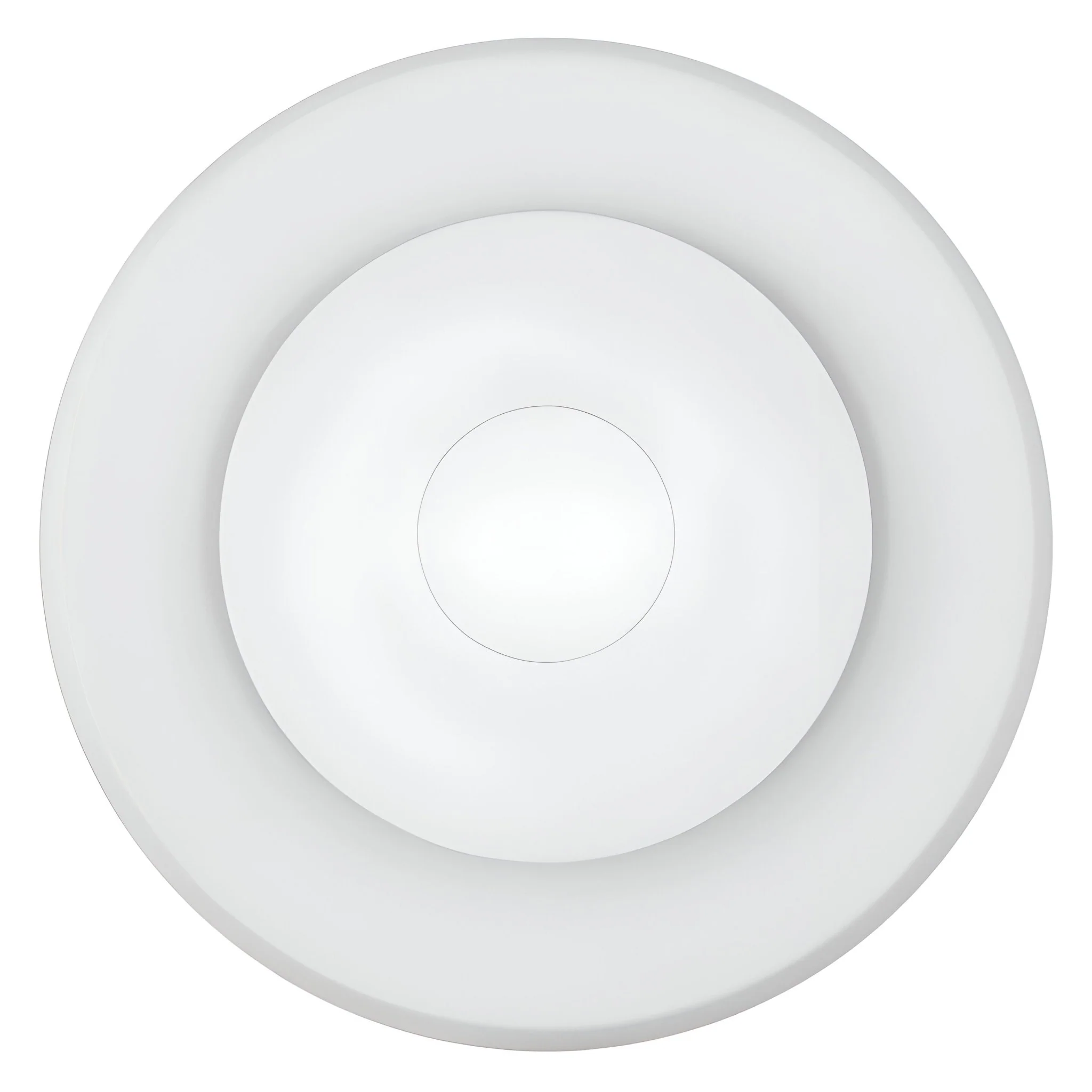

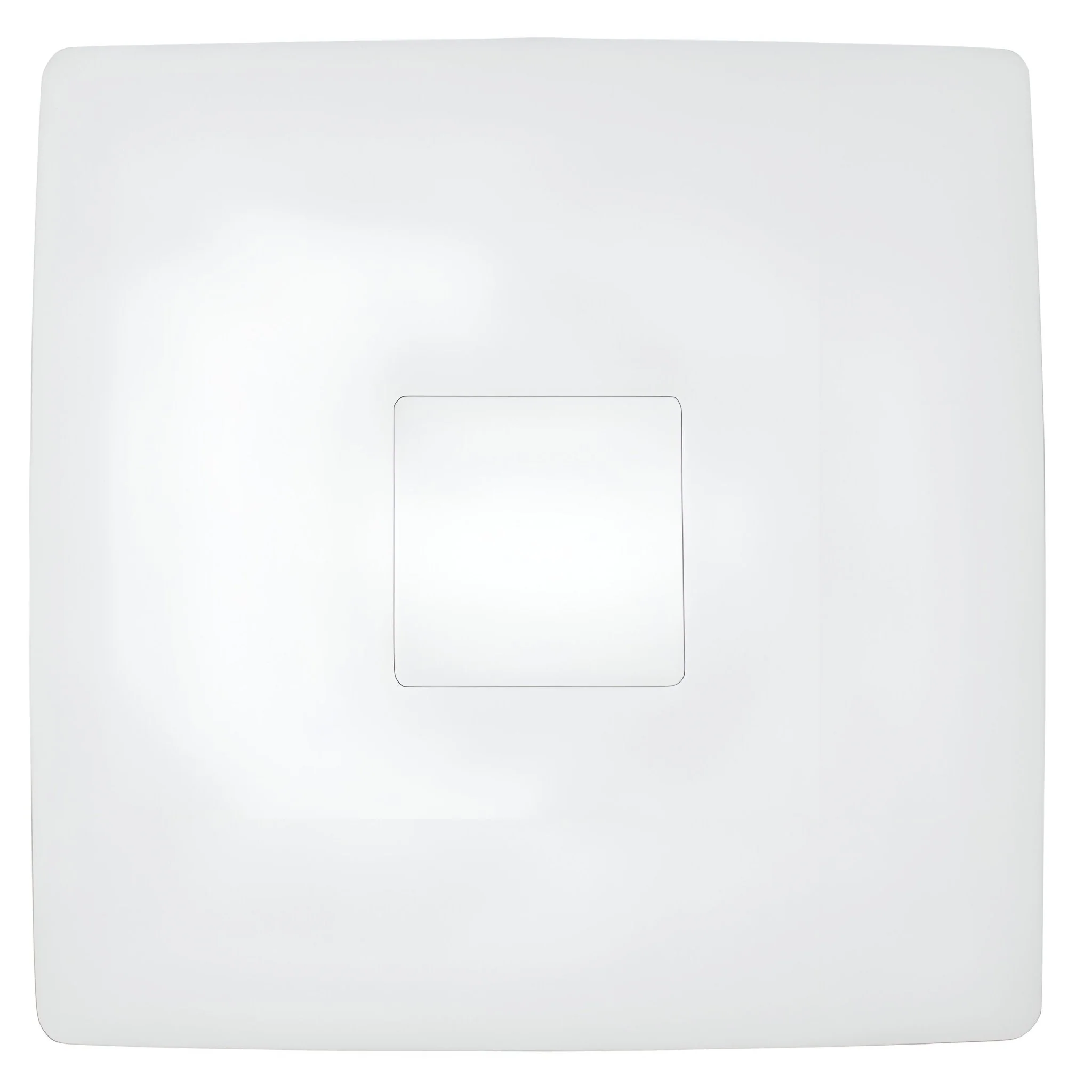

Available in Round and Square models.
Available in 1 sizes to10” Rapid Response header box fan models.
Stylish, contemporary design.
LED light & Rapid Response Fan can be controlled separately.
Quick & easy to install.
Can be retrofitted to a previously installed Rapid Response Fan.
LED light can be set to daylight, cool or warm white to match other installed lights.
Technical Data
LED Grilles
| Model | Grille | Lumens (LM) | Input Power (W) | Colour Temp (K) | Beam Angle |
|---|---|---|---|---|---|
| RESPG8-SQWH-TRILED RESPG8-SQBK-TRILED |
Square | 1000 | 12 | 3000/4200/6000 | 180° |
| RESPG8-RNWH-TRILED RESPG8-RNBK-TRILED |
Round | 800 | 9 | 3000/4200/6000 | 180° |
| RESPG150SQWH-TRILED RESPG150SQBK-TRILED |
Square | 1000 | 12 | 3000/4200/6000 | 180° |
| RESPG150RNWH-TRILED RESPG150RNBK-TRILED |
Round | 800 | 9 | 3000/4200/6000 | 180° |

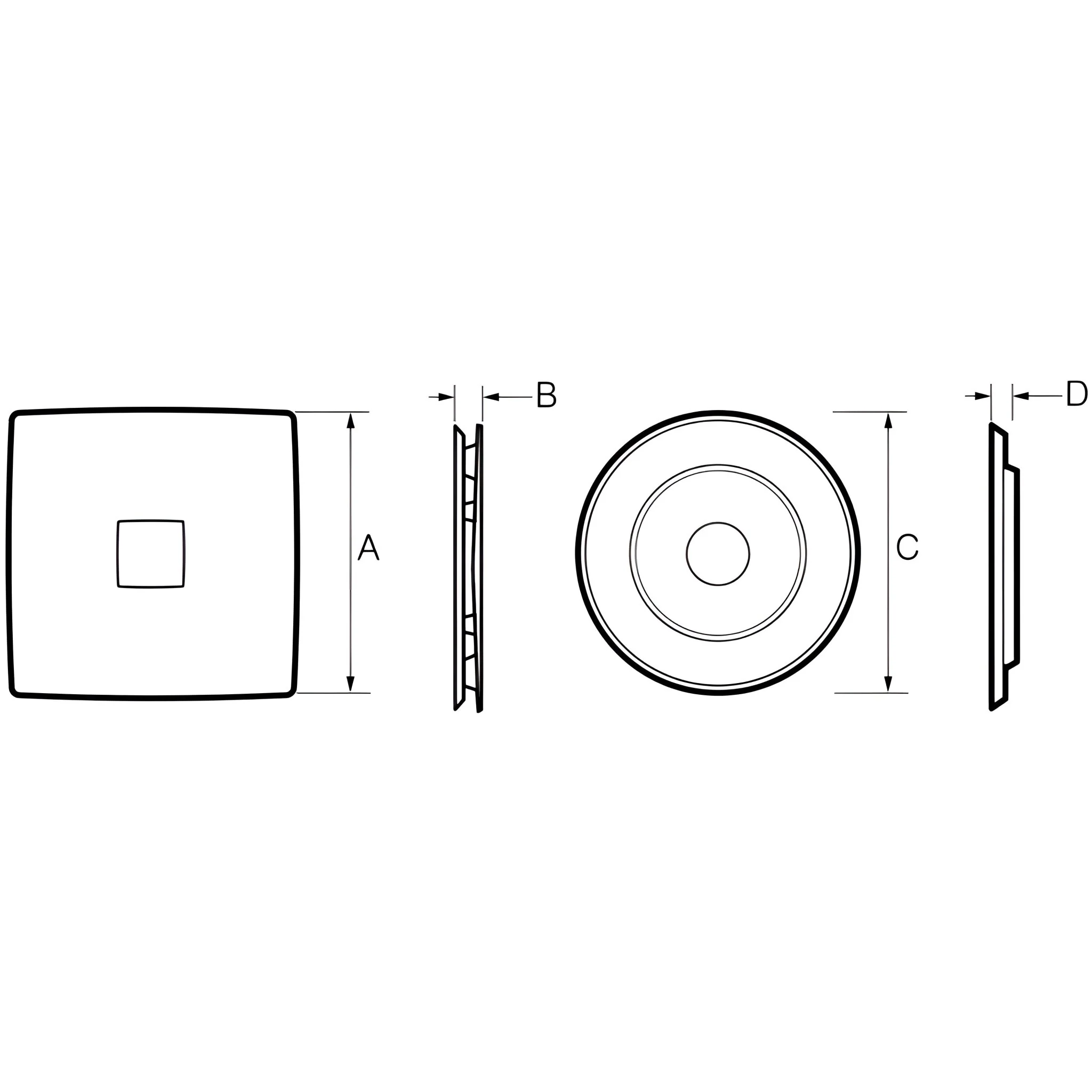

| Model No. | A□ | B | CØ | D |
|---|---|---|---|---|
| RESPG8-SQWH-TRILED | 300 | 28 | - | - |
| RESPG8-SQBK-TRILED | 300 | 28 | - | - |
| RESPG8-RNWH-TRILED | - | - | 294 | 19 |
| RESPG8-RNBK-TRILED | - | - | 294 | 19 |
| RESPG150SQWH-TRILED | 353 | 30 | - | - |
| RESPG150SQBK-TRILED | 353 | 30 | - | - |
| RESPG150RNWH-TRILED | - | - | 332 | 24 |
| RESPG150RNBK-TRILED | - | - | 332 | 24 |
Fantech RAPID Response 200/250 Ducted Ceiling Exhaust Fan IPX4 - Timer or No Timer for the product (Click here).
