SAL BARRACUDA LED Linear Batten Tri - Grey 12/40W 240V IP66 - SL9723TC/MP

Product image 1
1 / 3

SAL BARRACUDA LED Linear Batten Tri - Grey 12/40W 240V IP66 - SL9723TC/MP

Commercial or industrial ceiling or suspended mount applications requiring IP66 and IK10 performance

Design Specifications

  • Selectable CCT 3000K /4000K /5700K

  • Rounded profile design, robust aluminium body and UV stabilized polycarbonate diffuser

  • Integral non-dimmable, multi-power LED driver, 12/21 or 24/40 watt models

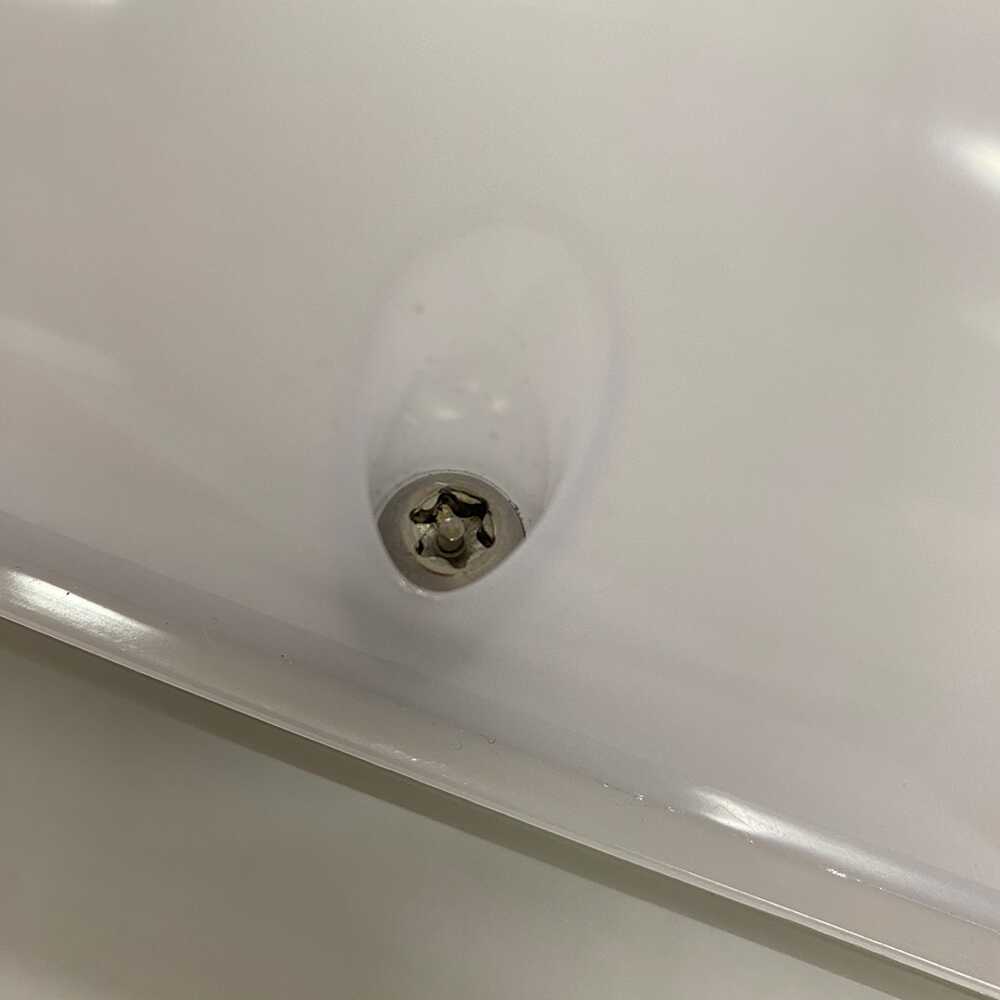

  • Secure stainless steel fasteners for the diffuser retention, optional accessories - M6 304 stainless steel security screws to fit a T30 TORX key (SL9723TP/SCREW)

  • Installation types -
    Surface mount (standard),
    Suspended (two off, SSY1512 wire suspension kits are required).



  • Lumens (lm) shown are displayed at FULL power, for switched lumen values, refer installation instructions

Model No. Input Voltage Multiple Wattage Lumens CRI CCT Beam Angle Body Colour Dim
SL9723/20TC/MP 240 12/15/18/21 2300/2500/2400 80 3000/4000/5700 120 GREY 698(L) x 137(W) x 115(H)
SL9723/40TC/MP 240 24/30/35/40 4600/5000/4800 80 3000/4000/5700 120 GREY 1306(L) x 137(W) x 115(H)
SL9723TP/SCREW M6 304 STAINLESS STEEL 137(W)
Select Options
From $4.25

Original: $12.13

-65%
SAL BARRACUDA LED Linear Batten Tri - Grey 12/40W 240V IP66 - SL9723TC/MP—

$12.13

$4.25

Product Information

Shipping & Returns

Description

Commercial or industrial ceiling or suspended mount applications requiring IP66 and IK10 performance

Design Specifications

  • Selectable CCT 3000K /4000K /5700K

  • Rounded profile design, robust aluminium body and UV stabilized polycarbonate diffuser

  • Integral non-dimmable, multi-power LED driver, 12/21 or 24/40 watt models

  • Secure stainless steel fasteners for the diffuser retention, optional accessories - M6 304 stainless steel security screws to fit a T30 TORX key (SL9723TP/SCREW)

  • Installation types -
    Surface mount (standard),
    Suspended (two off, SSY1512 wire suspension kits are required).



  • Lumens (lm) shown are displayed at FULL power, for switched lumen values, refer installation instructions

Model No. Input Voltage Multiple Wattage Lumens CRI CCT Beam Angle Body Colour Dim
SL9723/20TC/MP 240 12/15/18/21 2300/2500/2400 80 3000/4000/5700 120 GREY 698(L) x 137(W) x 115(H)
SL9723/40TC/MP 240 24/30/35/40 4600/5000/4800 80 3000/4000/5700 120 GREY 1306(L) x 137(W) x 115(H)
SL9723TP/SCREW M6 304 STAINLESS STEEL 137(W)
