SAL UFO - 80/200W - SHB23MP200TC/SHB23MP100TC

Product image 1
1 / 3

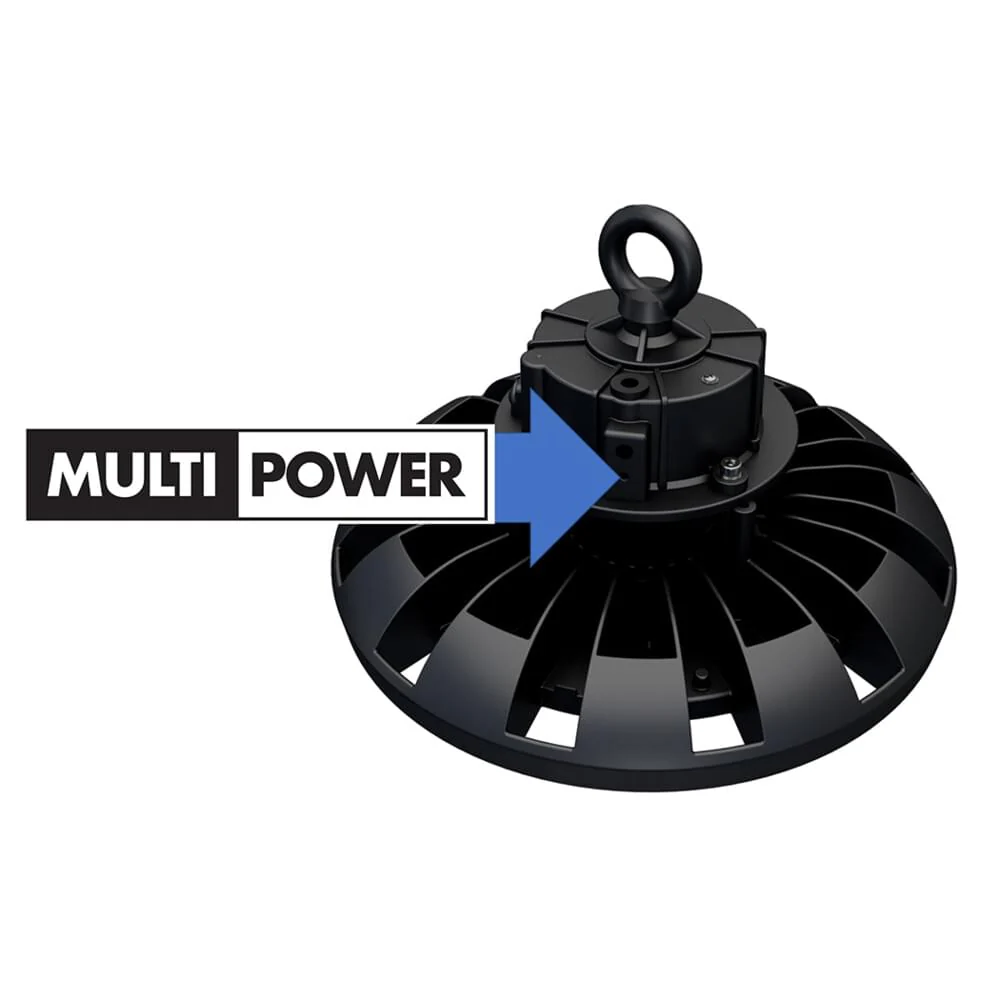

SAL UFO - 80/200W - SHB23MP200TC/SHB23MP100TC

Multi-purpose, 1-10V dimmable IP65 LED highbay or lowbay with selectable CCT and power.

Application

Versatile LED highbay or lowbay, ideal for commercial and industrial applications

Design Specifications

  • Integral selectable power

  • Integral selectable CCT 3000K / 4000K / 5000K

  • Robust, low profile die-cast aluminium IP65/IK08 body profile.

  • High efficiency LED optics, with an impressive >140lm/W optical performance at 150W or 200W @ 4000K, CRI > 80, 90° degree beam distribution, polycarbonate lens

  • Integral 1-10V dimmable LED driver, complete with flex and plug for easy installation, optional inline DALI signal converter, optional plug and play corridorSTANDBY sensor

  • Power/lumen settings at:
    3000K : 80W/11400lm, 120W/16000lm, 150W/18800lm,
    4000K     : 80W/12400lm, 120W/18000lm, 150W/21800lm,
    5000K : 80W/11800lm, 120W/16500lm, 150W/20000lm.
    3000K : 100W/13000lm, 150W/18000lm, 200W/22000lm,
    4000K     : 100W/14500lm, 150W/21000lm, 200W/26000lm,
    5000K : 100W/14000lm, 150W/19500lm, 200W/24000lm.

Performance

  • Dimmable - YES
  • Dimmer Type - 1-10V, optional SAL DALI signal converter
    Model No. Input Voltage Multiple Wattage Lumens Beam Angle CCT CRI Body Colour Diameter Dim Mass IPART

    		SHB23MP100TC 240 80/120/150 12400/18000/21800 90 3000/4000/5000 80 BLACK 280 280(W) x 192(H) 2.5 YES

    		SHB23MP200TC 240 100/150/200 14500/21000/26000 90 3000/4000/5000 80 BLACK 300 300(W) x 192(H) 2.8 YES

Select Style
From $59.56

Original: $170.18

-65%
SAL UFO - 80/200W - SHB23MP200TC/SHB23MP100TC—

$170.18

$59.56

Product Information

Shipping & Returns

Description

Multi-purpose, 1-10V dimmable IP65 LED highbay or lowbay with selectable CCT and power.

Application

Versatile LED highbay or lowbay, ideal for commercial and industrial applications

Design Specifications

  • Integral selectable power

  • Integral selectable CCT 3000K / 4000K / 5000K

  • Robust, low profile die-cast aluminium IP65/IK08 body profile.

  • High efficiency LED optics, with an impressive >140lm/W optical performance at 150W or 200W @ 4000K, CRI > 80, 90° degree beam distribution, polycarbonate lens

  • Integral 1-10V dimmable LED driver, complete with flex and plug for easy installation, optional inline DALI signal converter, optional plug and play corridorSTANDBY sensor

  • Power/lumen settings at:
    3000K : 80W/11400lm, 120W/16000lm, 150W/18800lm,
    4000K     : 80W/12400lm, 120W/18000lm, 150W/21800lm,
    5000K : 80W/11800lm, 120W/16500lm, 150W/20000lm.
    3000K : 100W/13000lm, 150W/18000lm, 200W/22000lm,
    4000K     : 100W/14500lm, 150W/21000lm, 200W/26000lm,
    5000K : 100W/14000lm, 150W/19500lm, 200W/24000lm.

Performance

  • Dimmable - YES
  • Dimmer Type - 1-10V, optional SAL DALI signal converter
    Model No. Input Voltage Multiple Wattage Lumens Beam Angle CCT CRI Body Colour Diameter Dim Mass IPART

    		SHB23MP100TC 240 80/120/150 12400/18000/21800 90 3000/4000/5000 80 BLACK 280 280(W) x 192(H) 2.5 YES

    		SHB23MP200TC 240 100/150/200 14500/21000/26000 90 3000/4000/5000 80 BLACK 300 300(W) x 192(H) 2.8 YES
