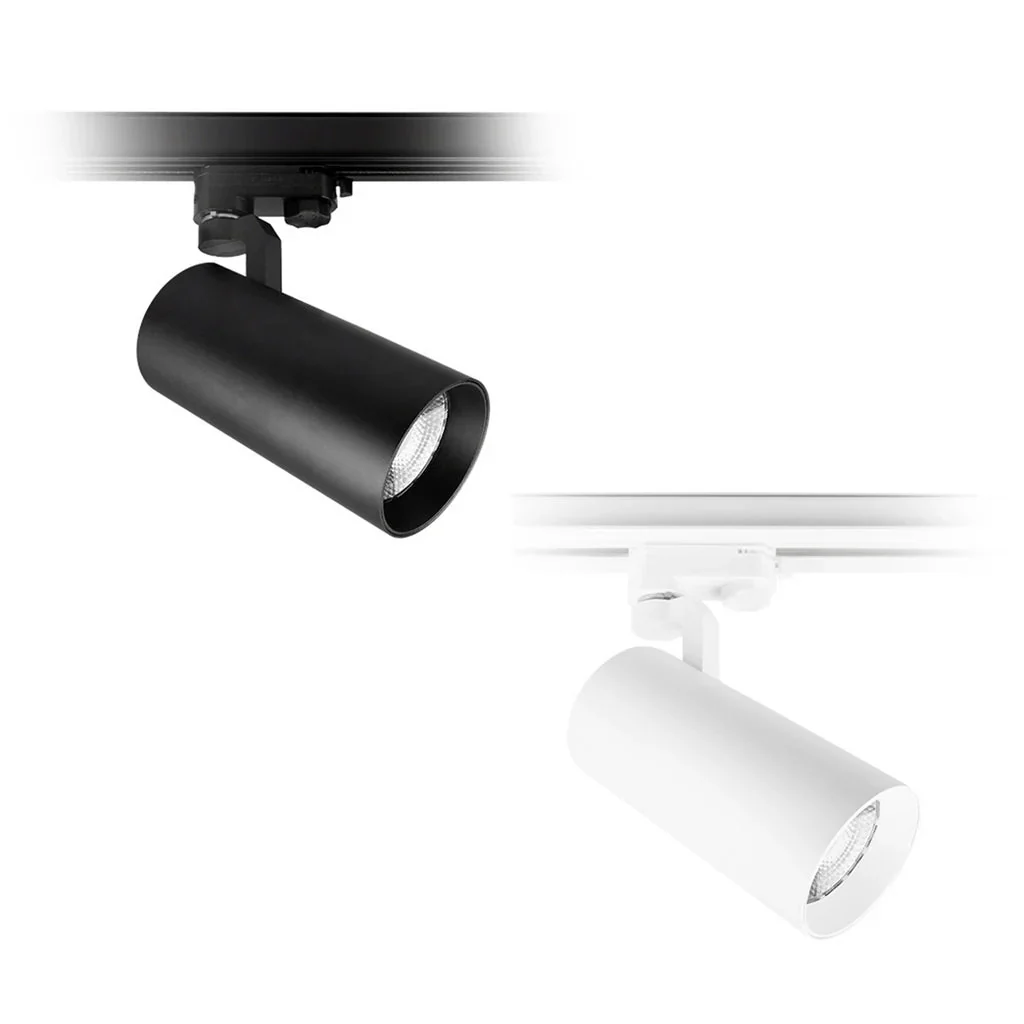

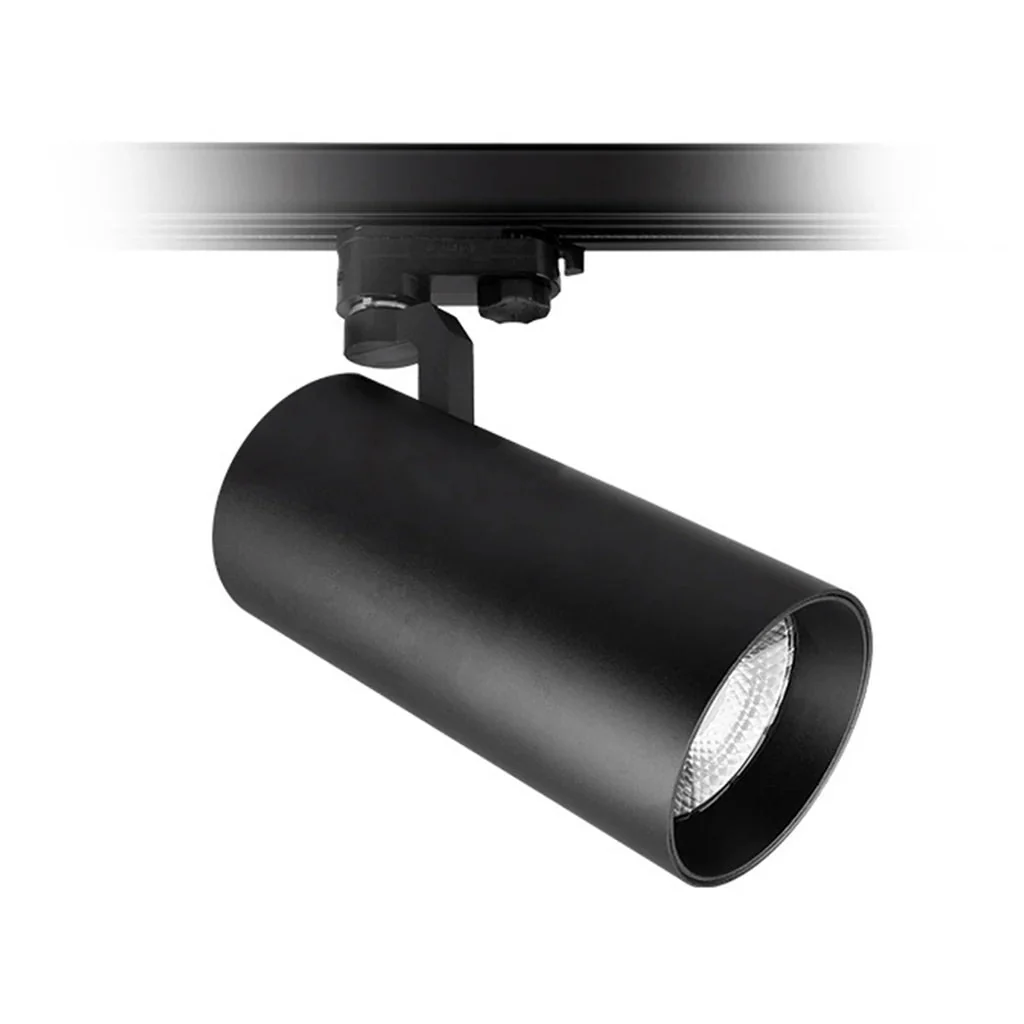

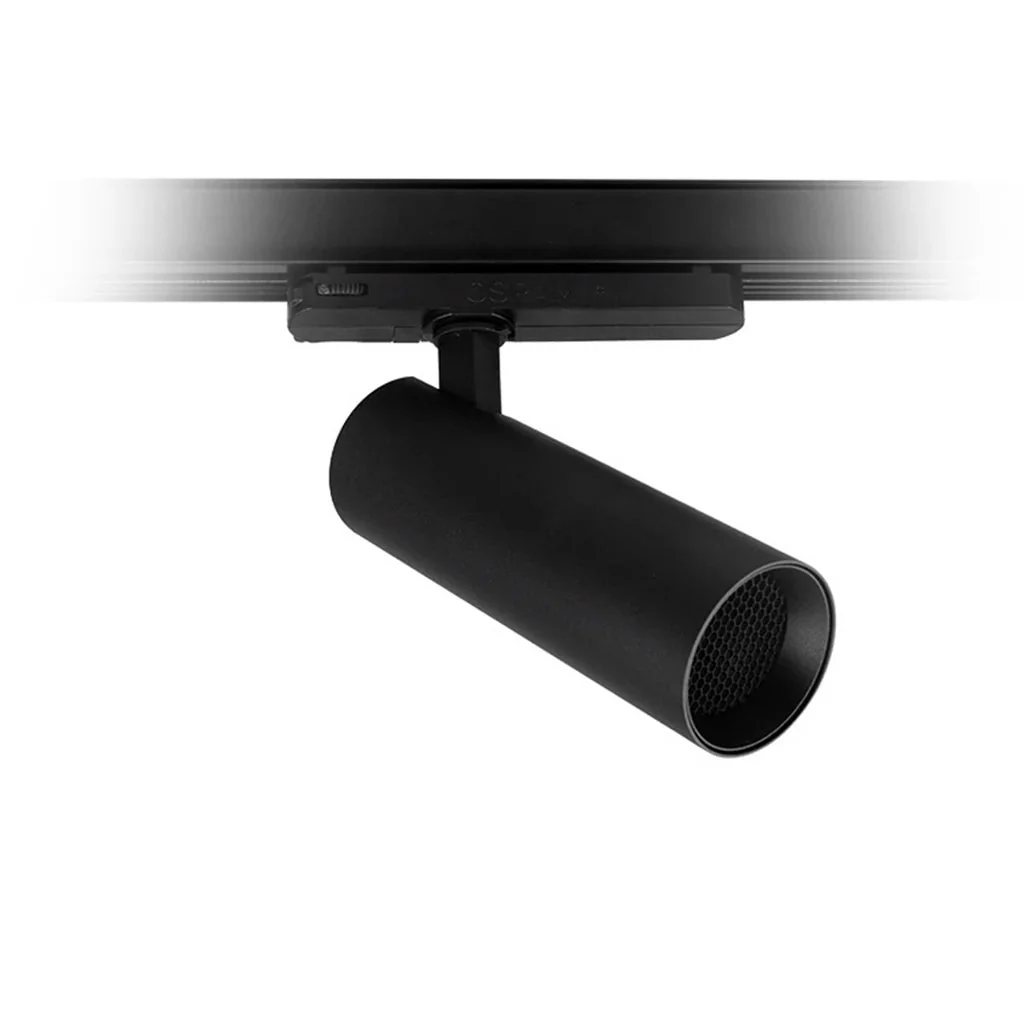

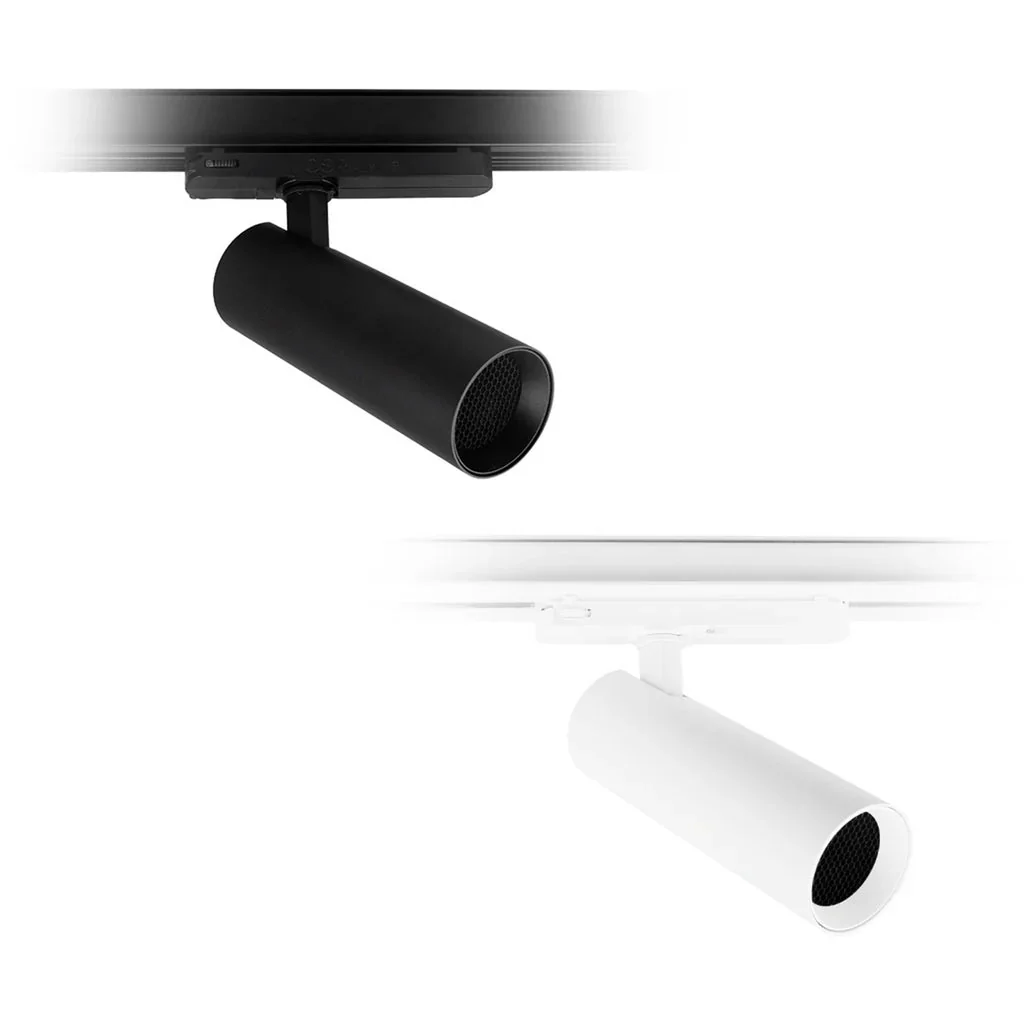

10W Track mounted miniature LED spotlight featuring a 1500+ lumen ceramic Nichia LED with a high efficiency collimating lens and low glare
honeycomb diffuser. Available in 2700k, 3000k, 3500k and 4000k colour temperature options in a 94+ CRI with an R9 of 50+. Supplied with 3-circuit track adaptor with integral track mounted driver.

Specifications

• Input Voltage: 240v
• System Power: 11.9w
• Led Power: 10w
• Colour Rendering: 94+
• IP Rating: IP20
• Tilt-Angle: 90°
• Rotation: 350°
• Weight: 0.685kg
• Efficacy: 102 lm/w 4000k
• Lifetime: 60,000hrs (L80 B10
• Dimming: Optional: Dali
• Protection: Thermal and Short Circuit
• Power Factor: > 0.95
• Beam Angle: Wide Beam | Medium Beam | Narrow Beam
• Trim Colour: Black | White

Dimensions

• Length: 185mm
• Diameter: Ø62mm



Wattage	Color Temp	Trim Colour	Lumens	Beam Angle	CRI
10w	2700k	Black	1420 lm	Medium	94+
10w	2700k	White	1420 lm	Medium	94+
10w	2700k	Black	1420 lm	Narrow	94+
10w	2700k	White	1420 lm	Narrow	94+
10w	2700k	Black	1420 lm	Wide	94+
10w	2700k	White	1420 lm	Wide	94+
10w	3000k	Black	1460 lm	Medium	94+
10w	3000k	White	1460 lm	Medium	94+
10w	3000k	Black	1460 lm	Narrow	94+
10w	3000k	White	1460 lm	Narrow	94+
10w	3000k	Black	1460 lm	Wide	94+
10w	3000k	White	1460 lm	Wide	94+
10w	3500k	Black	1485 lm	Medium	94+
10w	3500k	White	1485 lm	Medium	94+
10w	3500k	Black	1485 lm	Narrow	94+
10w	3500k	White	1485 lm	Narrow	94+
10w	3500k	Black	1485 lm	Wide	94+
10w	3500k	White	1485 lm	Wide	94+
10w	4000k	Black	1505 lm	Medium	94+
10w	4000k	White	1505 lm	Medium	94+
10w	4000k	Black	1505 lm	Narrow	94+
10w	4000k	White	1505 lm	Narrow	94+
10w	4000k	Black	1505 lm	Wide	94+
10w	4000k	White	1505 lm	Wide	94+
