Description

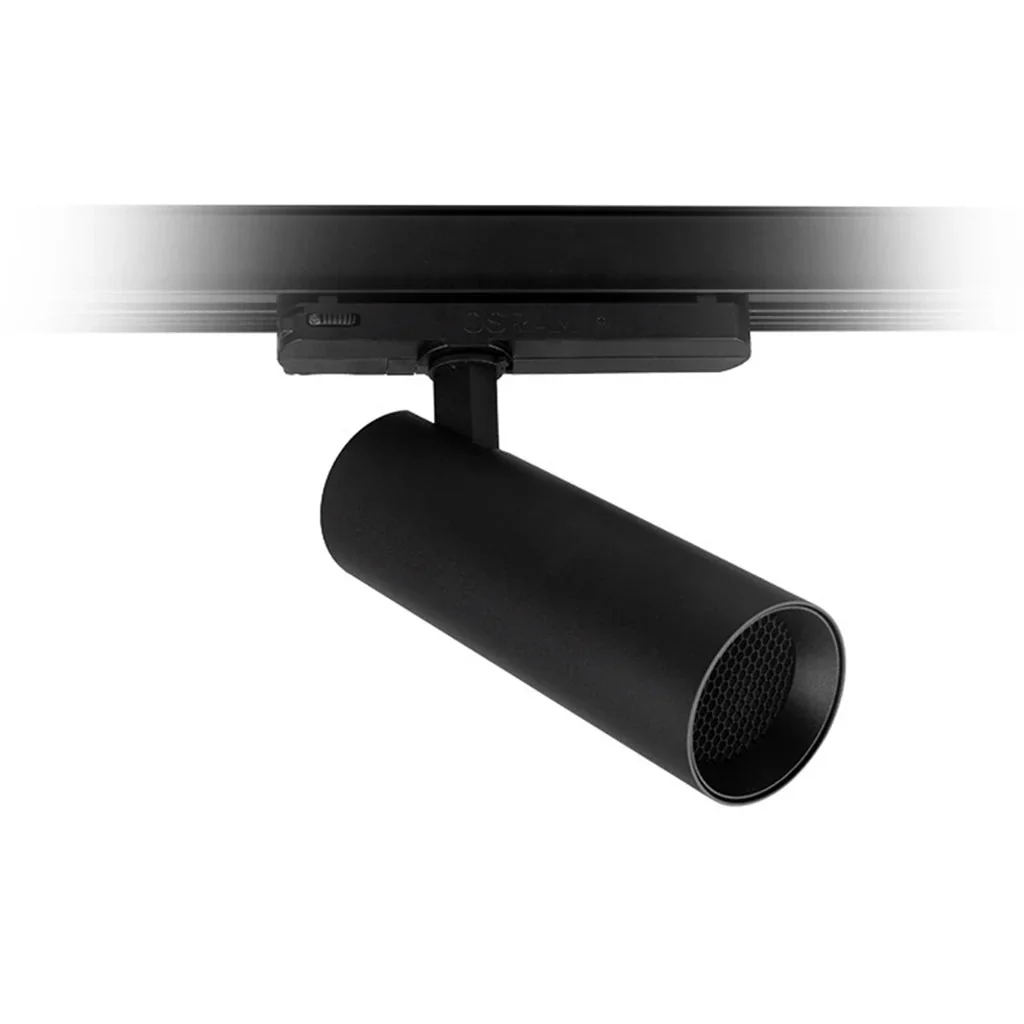

15W Track mounted miniature LED spotlight featuring a 2300+ lumen ceramic Nichia LED with a high efficiency collimating lens and low glare honeycomb diffuser. Available in 2700K, 3000K, 3500K and 4000K colour temperature options in a 94+ CRI with an R9 of 50+. Supplied with 3-circuit track adaptor with integral track mounted driver.

Also available with Nichia's award winning Optisolis LED..

Specifications

• Input Voltage: 240v
• System Power: 16.8w
• Led Power: 15w
• Colour Rendering: 94+
• IP Rating: IP20
• Tilt-Angle: 90°
• Rotation: 350°
• Weight: 0.685kg
• Efficacy: 97.9 lm/W 4000K
• Lifetime: 60,000hrs (L80 B10)
• Protection: Thermal and Short Circuit
• Power Factor: > 0.95

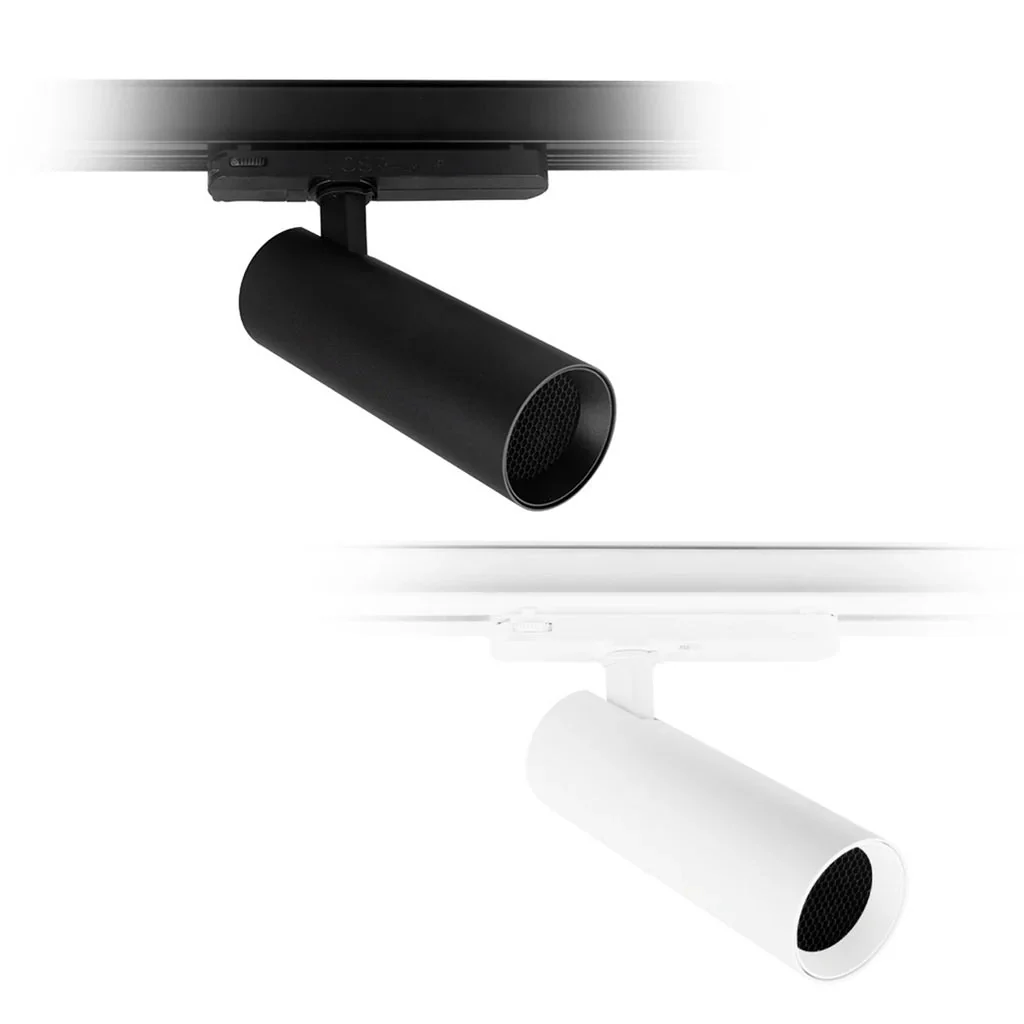

• Trim Colour: Black | White
• Colour Temp: 2700k | 3000k | 3500k | 4000k

Dimensions

• Length: 185mm
• Diameter: ø62mm



Wattage	Colour Temp	Trim Colour	Lumens	Beam Angle	CRI
15w	2700k	Black	2235 lm	Medium	94
15w	2700k	White	2235 lm	Medium	94
15w	2700k	Black	2235 lm	Narrow	94
15w	2700k	White	2235 lm	Narrow	94
15w	2700k	Black	2235 lm	Wide	94
15w	2700k	White	2235 lm	Wide	94
15w	3000k	Black	2270 lm	Medium	94
15w	3000k	White	2270 lm	Medium	94
15w	3000k	Black	2270 lm	Narrow	94
15w	3000k	White	2270 lm	Narrow	94
15w	3000k	Black	2270 lm	Wide	94
15w	3000k	White	2270 lm	Wide	94
15w	3500k	Black	2290 lm	Medium	94
15w	3500k	White	2290 lm	Medium	94
15w	3500k	Black	2290 lm	Narrow	94
15w	3500k	White	2290 lm	Narrow	94
15w	3500k	Black	2290 lm	Wide	94
15w	3500k	White	2290 lm	Wide	94
15w	4000k	Black	2310 lm	Medium	94
15w	4000k	White	2310 lm	Medium	94
15w	4000k	Black	2310 lm	Narrow	94
15w	4000k	White	2310 lm	Narrow	94
15w	4000k	Black	2310 lm	Wide	94
15w	4000k	White	2310 lm	Wide	94
