Description

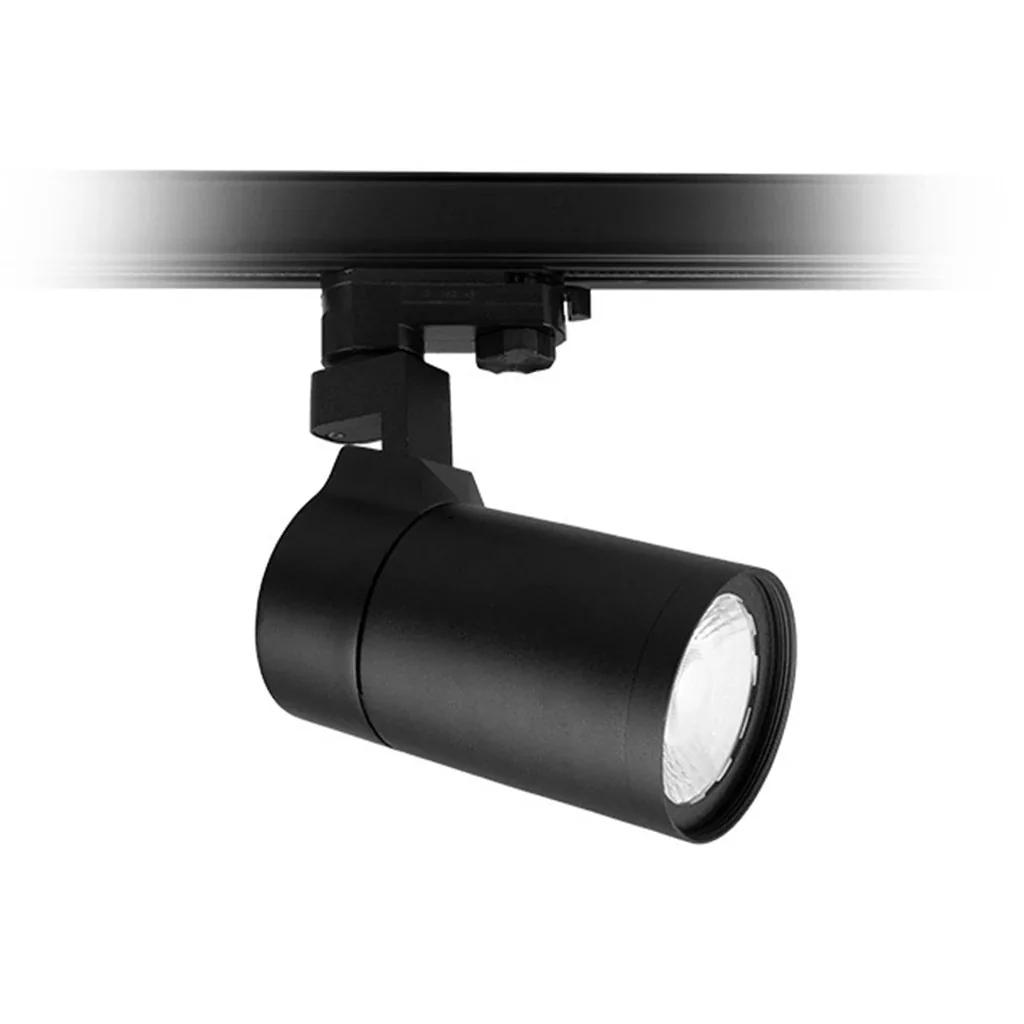

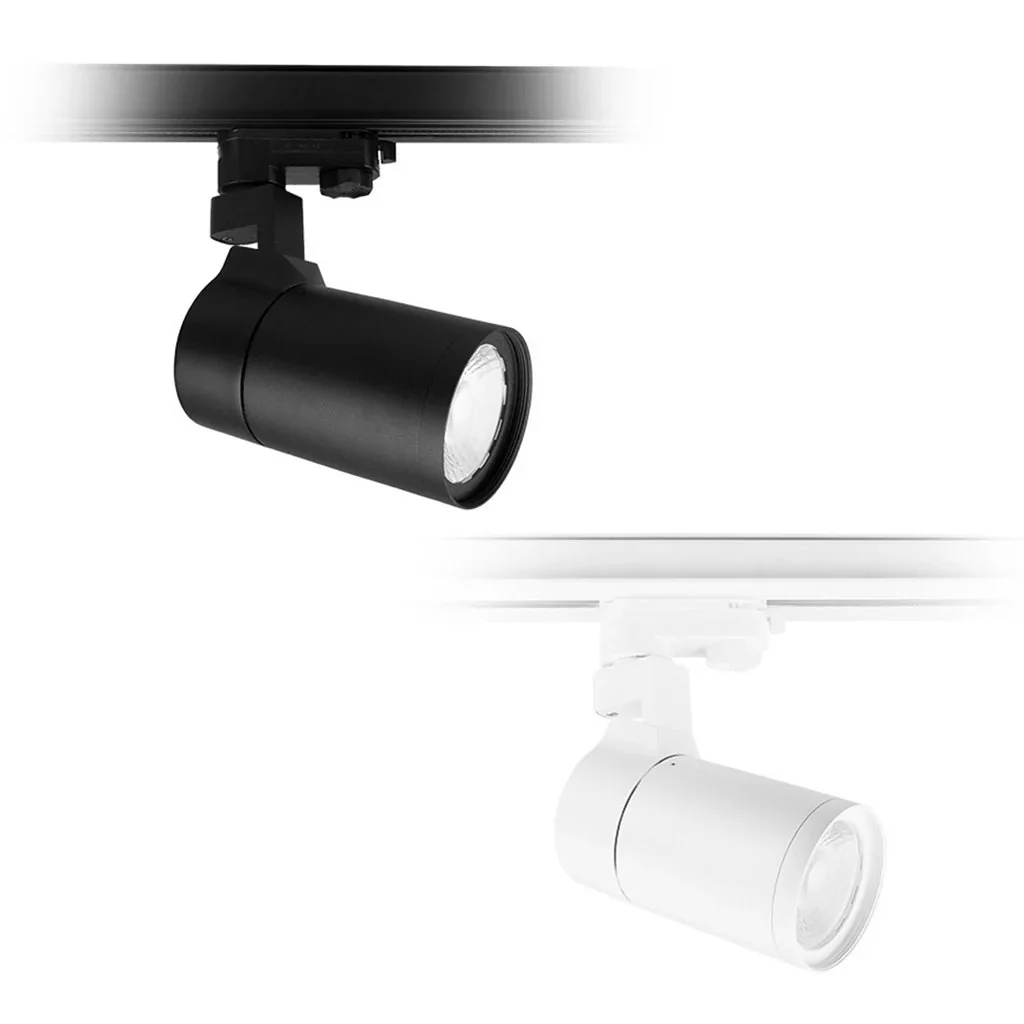

Track mounted compact LED spotlight with integral driver and three circuit track adaptor. Manufactured with a single 20w LED with a high colour rendering index of 90+ and high COB lumen outputs of 2300 lm (2700k), 2420 lm (k000K), 2480 lm (4000k) and 2545 lm (5000k). Fully adjustable track head design and a comprehensive range of accessories allow for versatile illumination options. Integrated heatsink provides effective thermal management ensuring high output and long lifespan.

Specifications

• Input Voltage: 240v
• System Power: 21.6w
• Led Power: 20w
• Colour Rendering: 90+
• IP Rating: IP20
• Tilt-Angle: 100°
• Rotation: 350°
• Weight: 0.685kg
• Efficacy: 90.83 lm/W 4000K Wide Beam
• Lifetime: 50,000hrs (L80)
• Protection: Thermal and Short Circuit
• Power Factor: > 0.95
• Trim Colour: Black | White
• Colour Temp: 2700k | 3000k | 4000k | 5000k

Dimensions

• Length: 150mm
• Diameter: Ø85mm



Wattage	Colour Temp	Trim Colour	Lumens	Beam Angle	CRI
20w	2700k	Black	2300 lm	Medium	90
20w	2700k	White	2300 lm	Medium	90
20w	2700k	Black	2300 lm	Narrow	90
20w	2700k	White	2300 lm	Narrow	90
20w	2700k	Black	2300 lm	Wide	90
20w	2700k	White	2300 lm	Wide	90
20w	3000k	Black	2420 lm	Medium	90
20w	3000k	White	2420 lm	Medium	90
20w	3000k	Black	2420 lm	Narrow	90
20w	3000k	White	2420 lm	Narrow	90
20w	3000k	Black	2420 lm	Wide	90
20w	3000k	White	2420 lm	Wide	90
20w	4000k	Black	2480 lm	Medium	90
20w	4000k	White	2480 lm	Medium	90
20w	4000k	Black	2480 lm	Narrow	90
20w	4000k	White	2480 lm	Narrow	90
20w	4000k	Black	2480 lm	Wide	90
20w	4000k	White	2480 lm	Wide	90
20w	5000k	Black	2545 lm	Medium	90
20w	5000k	White	2545 lm	Medium	90
20w	5000k	Black	2545 lm	Narrow	90
20w	5000k	White	2545 lm	Narrow	90
20w	5000k	Black	2545 lm	Wide	90
20w	5000k	White	2545 lm	Wide	90
